LR 2.8x20 U 10.30x23.5

Perforations

Product Information:

Image LR 2.8x20 U 10.30x23.5

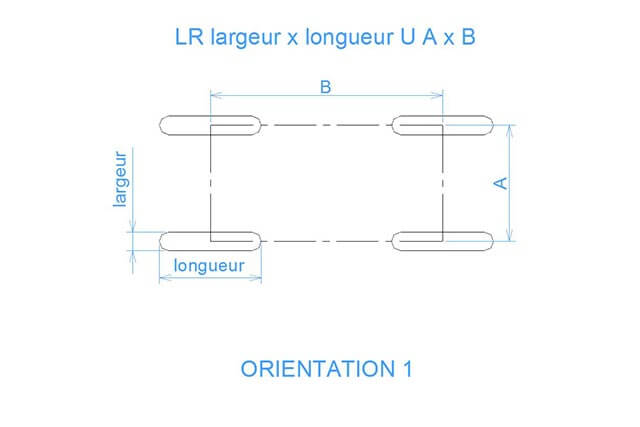

Schema lr-u-1
Schema lr-u-2

Long oblong: 2.8x20 mm
Center distance: 10.30x23.5 mm
% of void: 23.00 %
Perforation-bearing width: 1218.50 mm

Max thickness Mild steels: 1.50 mm
Max thickness Stainless steels F17: 0.80 mm
Max thickness Alus: 1.50 mm

Technical datasheet:
